Integrated Water Closet Flat Packed Homes
Lavatory lub tsev uas yog nyob rau hauv lub hauv paus ntawm tus qauv ca packed thawv tsev nce nyob rau hauv lub tsev tsa ncej, ntxuav lub phiab, dej thiab cov kav dej thiab lwm yam chaw, kom tau raws li cov kev xav tau ntawm cov neeg mus ntxuav.
Lub tsev chav dej muaj xws li lub thawv 3-meter, chav dej chav dej, 2 teeb ntawm stainless hlau dab dej (5 lub hlwb nrog ib lub taub txias txias), 1 teeb mop pas dej ua ke (nrog rau cov kais dej ib txwm), 1 teeb ntxhua khaub ncaws faucet, stainless hlau ntws. , 1 teeb lub qhov dej hauv pem teb, qhov rooj nrog qhov cua louver.Nws cov faucets thiab lwm yam ntaub ntawv yog tooj liab tub ntxhais, siv Tuam Tshoj cov khoom lag luam nto moo, qhov zoo yog qhov zoo heev.
Lub tsev tuaj yeem tsim tau raws li cov neeg siv khoom xav tau, xws li: Lub tsev txee dai dej yog ntxiv cov da dej ua haujlwm.
Partitions ntxiv rau cais chav da dej los ntawm chav ntxhua khaub ncaws ntxhua khaub ncaws.
Ib sab rau da dej, lwm sab rau chav dej
Ntxuav phiab nrog txawv Style
Kho kom zoo nkauj
Qab nthab
V-170 qab nthab (cov ntsia hlau zais)
V-290 qab nthab (tsis muaj ntsia thawv)
Nto ntawm phab ntsa vaj huam sib luag
Phab ntsa ripple vaj huam sib luag
Txiv kab ntxwv tev vaj huam sib luag
Rwb thaiv tsev txheej ntawm phab ntsa vaj huam sib luag
Pob zeb ntaub plaub
iav paj rwb
Lub phiab
Lub pas dej
Marble phiab
Teeb
Round teeb
Lub teeb ntev
Khaub ncaws ntxhua khaub ncaws
SS khaub ncaws ntxhua khaub ncaws
Marble khaub ncaws ntxhua khaub ncaws
GS Lub tsev pab pawg muaj lub tuam txhab tsim - Beijing Boyuhongcheng Architectural Design Co., Ltd.
lub koom haum tsim muaj peev xwm muab cov kev pab cuam kev taw qhia kev cai thiab ua kom muaj txiaj ntsig zoo rau cov neeg siv khoom sib txawv.thiab txhais cov ntsiab lus ntawm cov tsev prefabricated los ntawm kev xav ntawm cov neeg siv khoom.

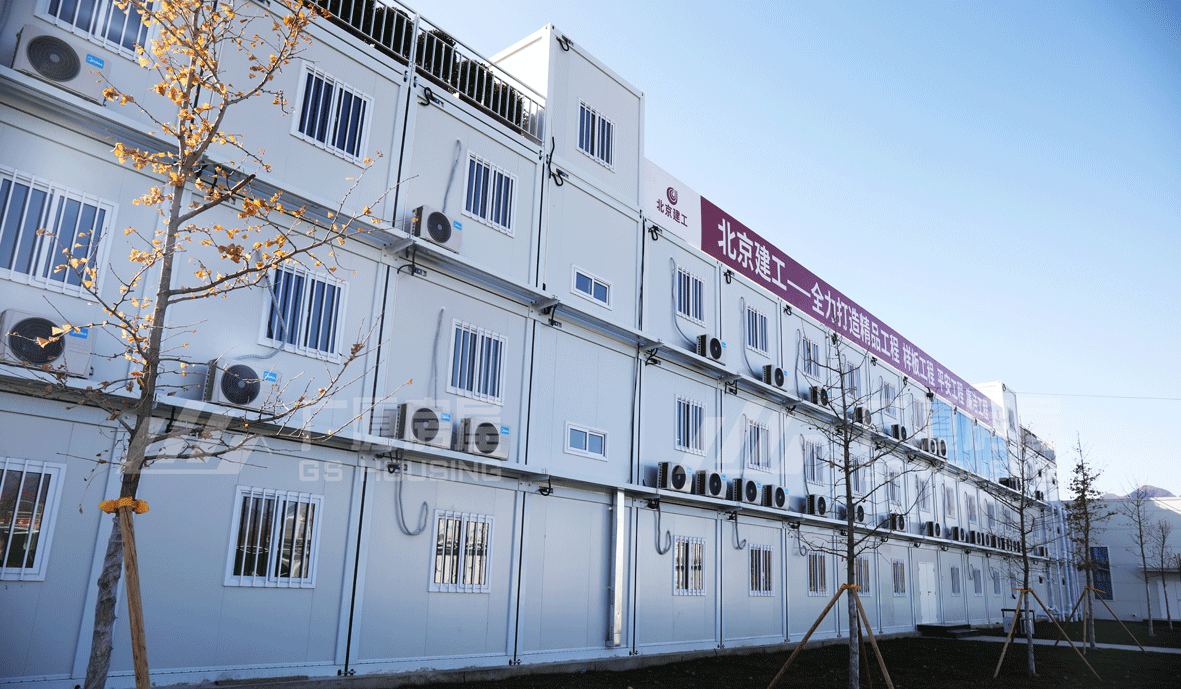

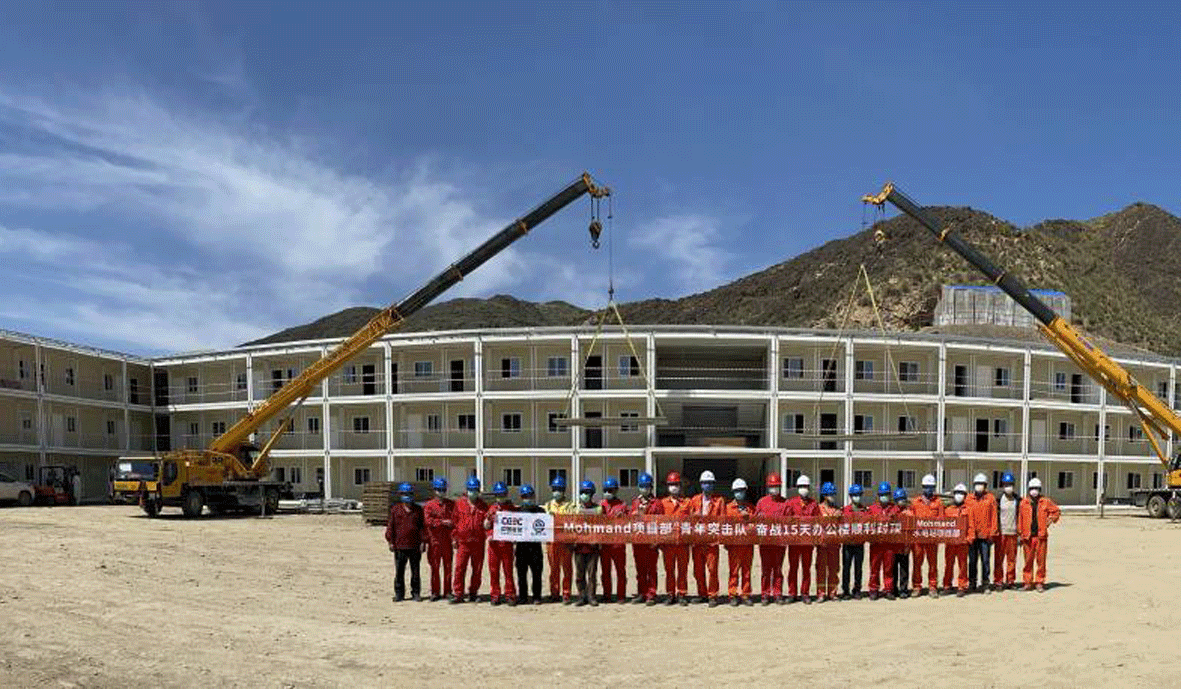

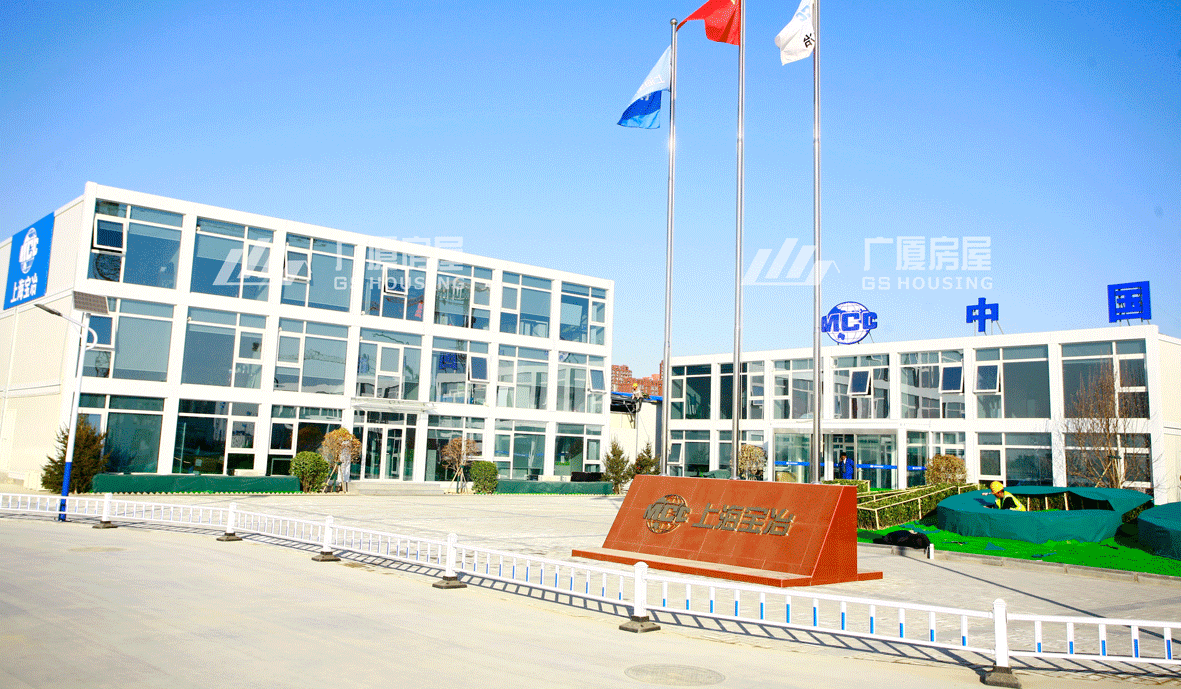

Tam sim no, peb tau ua ntau txoj haujlwm loj: Pakistan Mohmand Hydropower Project, Trinidad tshav dav hlau Project, Sri Lanka Colombo Project, La Paz Water Supply Project hauv Bolivia, Tuam Tshoj Universal project, Daxing International tshav dav hlau project, "HUOSHENGSHAN" & "LEISHENSHAN" tsev kho mob qhov project, thiab ntau yam kev tsim kho Metro hauv Suav teb ... suav nrog engineering camps, kev lag luam, pej xeem, kev kawm, tub rog camps industries thiab lwm yam.
1000-1500 hom thawv tsev tuaj yeem ua tau raws li qhov xav tau ntawm ntau hom chaw ua haujlwm, kev pab, da dej, chav ua noj, rooj sib tham thiab lwm yam.
Lub koom haum tsim qauv ntawm GS vaj tsev yog qhov tseem ceeb ntawm lub tuam txhab thev naus laus zis.Nws yog lub luag haujlwm rau kev txhim kho lub tuam txhab cov khoom tshiab, nrog rau kev txhim kho ntawm cov khoom uas twb muaj lawm, kev tsim qauv, kev tsim qauv tsim, kev siv nyiaj txiag thiab lwm yam kev ua haujlwm.Lawv tau ua tiav lub tsev tshiab-G hom, txhim kho lub tsev sai thiab lwm yam khoom, ua tiav 48 lub teb chaws invention patents.
| Dej Txee Lub Tsev | ||
| Specification | L * W * H (mm) | Qhov loj me 6055 * 2990 / 2435 * 2896 Sab hauv loj 5845 * 2780 / 2225 * 2590 customzied loj tuaj yeem muab |
| Lub tsev hom | Lub ru tsev tiaj tus nrog plaub sab hauv cov kav dej (Drain-pipe cross loj: 40 * 80mm) | |
| Storey | ≤ 3 | |
| Tsim hnub | Tsim kev pab lub neej | 20 xyoo |
| Pem teb nyob load | 2.0KN/㎡ | |
| Ru tsev nyob load | 0.5KN / ㎡ | |
| Huab cua load | 0.6KN / ㎡ | |
| Sersmic | 8 degree | |
| Qauv | Kem | Specification: 210 * 150mm, Galvanized txias yob steel, t = 3.0mm Khoom siv: SGC440 |
| Lub tsev beam | Specification: 180mm, Galvanized txias yob steel, t = 3.0mm Khoom siv: SGC440 | |
| Pem teb main beam | Specification: 160mm, Galvanized txias yob steel, t = 3.5mm Khoom siv: SGC440 | |
| Ru tsev sub beam | Specification: C100 * 40 * 12 * 2.0 * 7PCS, Galvanized txias yob C steel, t = 2.0mm Khoom siv: Q345B | |
| Pem teb sub beam | Specification: 120 * 50 * 2.0 * 9pcs, "TT" puab nias steel, t = 2.0mm Khoom siv: Q345B | |
| Xim | Hmoov electrostatic txau lacquer≥80μm | |
| Rooj | Lub vaj huam sib luag | 0.5mm Zn-Al coated yeeb yuj steel ntawv, dawb-grey |
| Cov khoom siv rwb thaiv tsev | 100mm iav ntaub plaub nrog ib qho Al foil.density ≥14kg/m³, Class A Tsis-combustible | |
| Qab nthab | V-193 0.5mm nias Zn-Al coated yeeb yuj steel ntawv, zais ntsia thawv, dawb-grey | |
| Pem teb | Pem teb nto | 2.0mm PVC board, tsaus grey |
| Puag | 19mm cement fiber board, ntom ≥1.3g / cm³ | |
| Moistureproof txheej | Moisture-pov thawj yas zaj duab xis | |
| Hauv qab sealing phaj | 0.3 hli Zn-Al coated board | |
| Phab ntsa | Thickness | 75mm tuab yeeb yuj steel sandwich phaj;Sab nrauv phaj: 0.5 hli txiv kab ntxwv tev aluminium plated zinc yeeb yuj steel phaj, ivory dawb, PE txheej;Puab phaj: 0.5mm aluminium-zinc plated ntshiab phaj ntawm xim hlau, dawb grey, PE txheej;Txais yuav "S" hom plug interface kom tshem tawm cov nyhuv ntawm tus choj txias thiab kub |
| Cov khoom siv rwb thaiv tsev | pob zeb wool, ntom ≥100kg / m³, Chav A Tsis-combustible | |
| Qhov rooj | Specification (hli) | W * H = 840 * 2035 hli |
| Khoom siv | Steel shutter | |
| Qhov rai | Specification (hli) | Pem hauv ntej qhov rais: W * H = 1150 * 1100, Rov qab qhov rais: W * H = = 800 * 500 |
| Cov khoom siv ncej | Pastic steel, 80S, Nrog kev tiv thaiv tub sab tub nyiag, Qhov rai pom qhov rai | |
| iav | 4mm + 9A + 4mm ob lub iav | |
| Hluav taws xob | Qhov hluav taws xob | 220V ~ 250V / 100V ~ 130V |
| Hlau | Main hlau: 6㎡, AC xaim: 4.0㎡, socket hlau: 2.5㎡, lub teeb hloov hlau: 1.5㎡ | |
| Breaker | Miniature Circuit Court breaker | |
| Teeb pom kev zoo | Ob chav voj voog waterproof teeb, 18W | |
| Qhov (socket). | 1pcs 5 qhov socket 10A, 1pcs 3 qhov AC socket 16A, 1pcs ib qho kev sib txuas dav hlau hloov 10A (EU / US ..standard) | |
| Water Supply & Drainage System | Qhov system muab dej | DN32, PP-R, Cov kav dej xa dej thiab fittings |
| Cov dej ntws tawm | De110 / De50, UPVC Dej cov yeeb nkab thiab fittings | |
| Hlau Ncej | Cov khoom siv ncej | Galvanized square yeeb nkab 40 * 40 * 2 |
| Puag | 19mm cement fiber board, ntom ≥1.3g / cm³ | |
| Pem teb | 2.0mm tuab PVC pem teb, tsaus grey | |
| Cov khoom siv huv huv | Cov khoom siv huv huv | 2pcs quintuple dab dej, 10pcs gooseneck faucet, 1pcs ntxhua khaub ncaws faucet, 1pcs mop dab dej thiab faucet |
| Fittings | stainless hlau gutter, stainless hlau gutter grate, 1pcs standy pem teb ntws | |
| Lwm tus | Sab saum toj thiab kem decorate ib feem | 0.6mm Zn-Al coated xim hlau ntawv, dawb-grey |
| Skirting | 0.8mm Zn-Al coated xim steel skirting, dawb-grey | |
| Qhov rooj kaw | 1pcs Qhov Rooj Closer, Aluminium (yeem) | |
| Txais cov qauv tsim, cov khoom siv thiab fittings yog accord nrog lub teb chaws tus qauv.as well as, customized loj thiab lwm yam chaw yuav muab tau raws li koj xav tau. | ||
