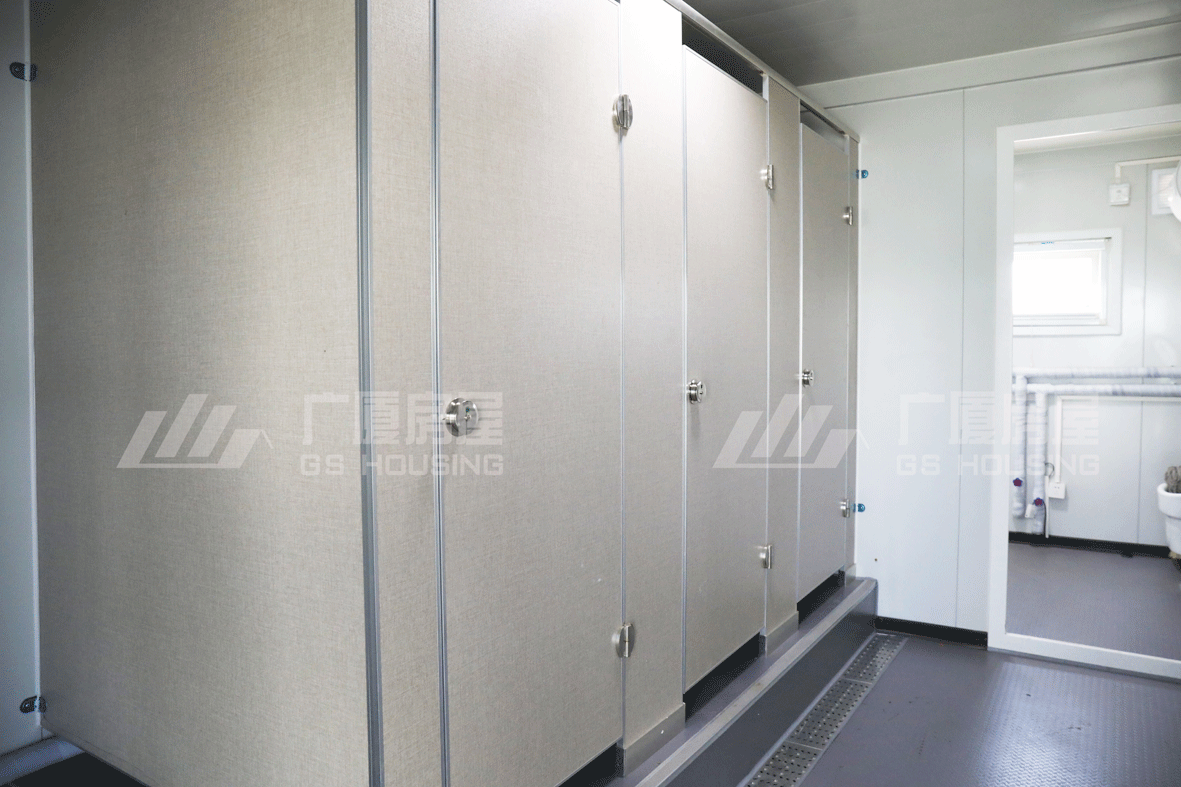

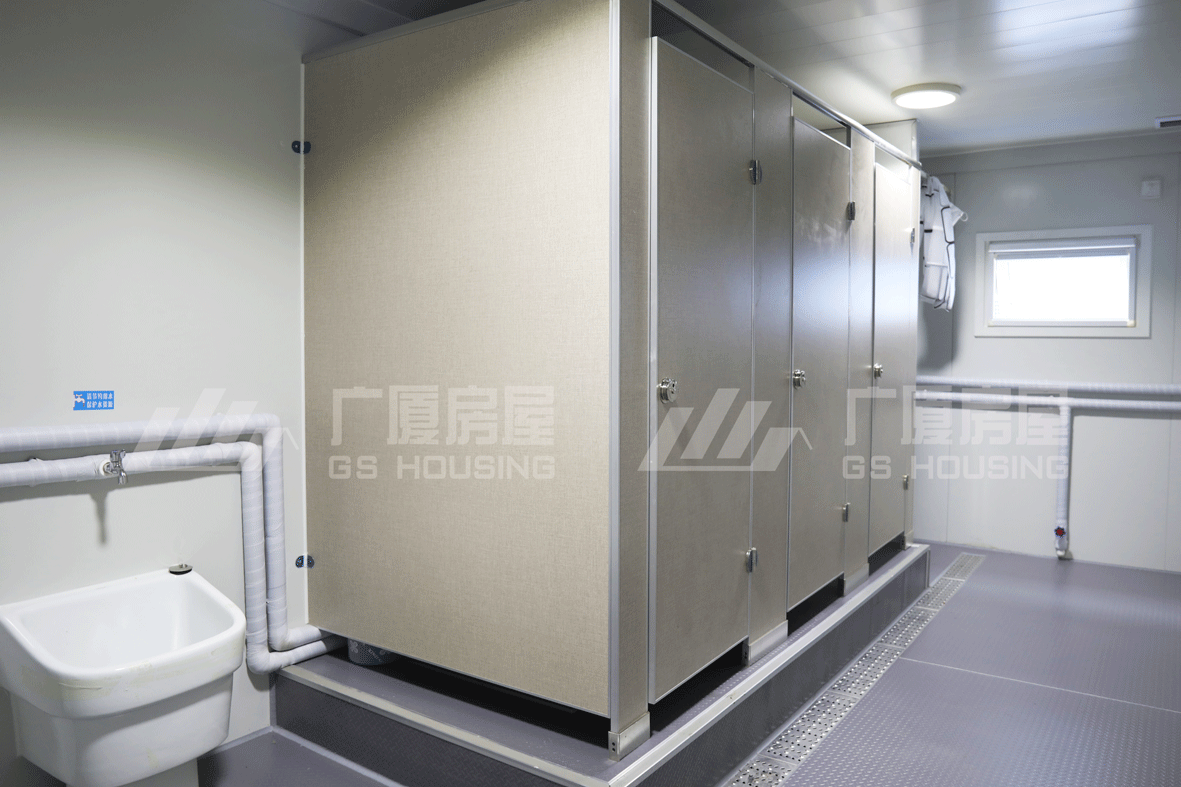

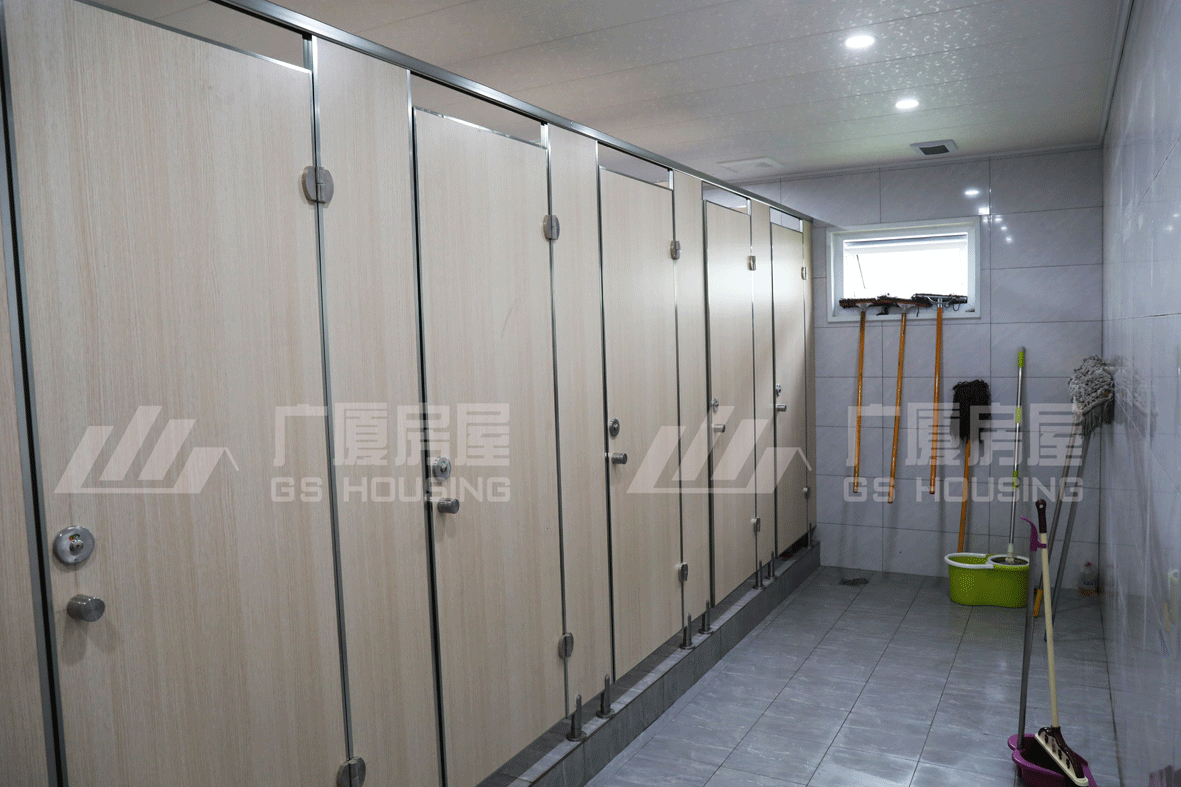

Poj Niam Toilet Ready Container House
Tus tsim ntawm poj niam lub tsev tso quav hauv GS vaj tse yog humanized.Lub tsev tuaj yeem txav tau tag nrho, lossis ntim thiab txav mus tom qab kev sib dhos, tom qab ntawd rov ua dua ntawm qhov chaw thiab muab tso rau hauv kev siv tom qab txuas nrog dej thiab hluav taws xob.
Cov khoom siv huv huv hauv cov qauv poj niam lub tsev tso quav suav nrog 5pcs squatting chav dej thiab cov tso dej tso dej, 1pcs mop dab dej thiab faucet, 1pcs kem phiab thiab faucet, hauv cov chaw tuaj yeem tsim raws li qhov kev xav tau sib txawv.
Tsis tas li ntawd, tus qauv dav ntawm lub tsev da dej yog 2.4 / 3M, lub tsev loj dua lossis me me tuaj yeem hloov kho.
Sanitary Wares Pob
Cov Qauv Txheej Txheem Siab
Sab saum toj ncej
Main beam:
3.0mm tuab galvanized txias dov steel profile, khoom siv: SGC340;
Sub-beam: txais 7pcs galvanizing steel, khoom siv: Q345B, ncua sijhawm: 755mm.
Lub thickness ntawm lub khw modular tsev yog 2.5-2.7 hli, kev pab cuam lub neej yog hais txog 15 xyoo.xav txog qhov kev ua haujlwm txawv teb chaws, kev saib xyuas tsis yooj yim, peb tau ua kom tuab cov nqaj hlau ntawm lub tsev, 20 xyoo kev pab lub neej yog guaranteed.
Hauv qab ncej:
Main beam:
3.5mm tuab galvanized txias dov steel profile, khoom siv: SGC340;
Sub-beam: 9pcs "π" ntaus galvanizing steel, khoom siv: Q345B,
Lub thickness ntawm lub khw modular tsev yog 2.5-2.7 hli, kev pab cuam lub neej yog hais txog 15 xyoo.xav txog qhov kev ua haujlwm txawv teb chaws, kev saib xyuas tsis yooj yim, peb tau ua kom tuab cov nqaj hlau ntawm lub tsev, 20 xyoo kev pab lub neej yog guaranteed.
Kem:
3.0mm Galvanized txias dov steel profile, khoom siv: SGC440, plaub kab tuaj yeem hloov pauv.
Cov kab txuas nrog rau sab saum toj thiab hauv qab ncej nrog Hexagon taub hau bolts (lub zog: 8.8)
Xyuas kom lub rwb thaiv tsev thaiv yog sau tom qab ua tiav cov installation ntawm txhua.
Ntxiv cov ntaub nplaum insulating ntawm cov junctions ntawm cov qauv thiab cov phab ntsa vaj huam sib luag los tiv thaiv cov nyhuv ntawm qhov txias thiab cua sov txuas hniav thiab txhim kho kev ua haujlwm ntawm kev txuag hluav taws xob thiab txuag hluav taws xob.
Phab ntsa panels:
Thickness: 60-120mm tuab yeeb yuj steel sandwich vaj huam sib luag,
Lub Rooj Tswjhwm Saib Sab Nraud: Sab nrauv yog ua los ntawm 0.42mm txiv kab ntxwv tev qauv Alu-zinc yeeb yuj steel phaj, HDP txheej,
Rwb thaiv tsev txheej: 60-120 mm tuab hydrophobic basalt wool (kev tiv thaiv ib puag ncig), ceev ≥100kg / m³, combustion kev ua tau zoo yog Class A tsis-combustible.
Sab hauv phab ntsa vaj huam sib luag: Sab hauv vaj huam sib luag txais 0.42mm ntshiab tiaj tiaj Alu-zinc yeeb yuj steel phaj, PE txheej, xim: dawb grey,
Xyuas kom cov khoom kub rwb thaiv tsev, suab rwb thaiv tsev ua haujlwm.
Poj Niam Toilet House Application
Kev teeb tsa lub tsev tso quav yog qhov nyuaj dua li cov qauv tsev, tab sis peb muaj cov ncauj lus kom ntxaws txog kev teeb tsa thiab cov yeeb yaj kiab, thiab cov yeeb yaj kiab hauv online tuaj yeem txuas los pab cov neeg siv khoom daws teeb meem teeb tsa, tau kawg, cov neeg saib xyuas kev teeb tsa tuaj yeem xa mus rau qhov chaw. yog xav tau.
Muaj ntau tshaj 360 tus kws tshaj lij lub tsev teeb tsa cov neeg ua haujlwm hauv GS vaj tse, ntau dua 80% tau ua haujlwm hauv GS Housing tshaj 8 xyoo.Tam sim no, lawv tau teeb tsa ntau dua 2000 txoj haujlwm ua haujlwm zoo.
Qhuav Bases Taw Qhia
GS Housing's tsib lub hauv paus tsim khoom muaj peev xwm tsim tau txhua xyoo ntau dua 170,000 lub tsev, muaj zog ua tiav kev tsim khoom thiab kev ua haujlwm muaj peev xwm muab kev txhawb nqa rau tsev tsim khoom.Raws li cov chaw tsim khoom tsim nrog vaj-hom, ib puag ncig zoo nkauj heev, Lawv yog cov loj-scale tshiab thiab niaj hnub modular tsev cov khoom tsim hauv Suav teb.Lub koom haum tshawb fawb tshwj xeeb modular vaj tse tau tsim los xyuas kom meej tias nws muab cov neeg siv khoom muaj kev nyab xeeb, ib puag ncig, phooj ywg, ntse thiab xis nyob ua ke hauv tsev.
Ntse Hoobkas-ntau lawm puag hauv Tianjin
Npog: 130,000㎡
Muaj peev xwm tsim tau txhua xyoo: 50,000 teeb tsa tsev
Garden-type Hoobkas- ntau lawm puag hauv Jiangsu
Npog: 80,000㎡
Muaj peev xwm tsim tau txhua xyoo: 30,000 teeb tsa tsev
6S qauv Hoobkas- ntau lawm puag hauv Guangdong
Npog: 90,000 ㎡
Muaj peev xwm tsim tau txhua xyoo: 50,000 teeb tsa tsev
Ua haujlwm zoo-tsim hauv paus hauv Liaoning
Npog: 60,000㎡
Muaj peev xwm tsim tau txhua xyoo: 20,000 teeb tsa tsev.
Ecological Hoobkas-ntau lawm puag hauv Sichuan
Npog: 60,000㎡
Muaj peev xwm tsim tau txhua xyoo: 20,000 teeb tsa tsev.
GS Housing muaj cov kev txhawb nqa modular vaj tsev ntau lawm kab, suav nrog tag nrho cov tsis siv neeg sib xyaw board ntau lawm kab, Graphene electrostatic spray txheej kab, ywj siab profiling rhiav, qhov rooj thiab qhov rais rhiav, machining rhiav, sib dhos rhiav, tag nrho tsis siv neeg CNC nplaim taws txiav machine, thiab laser txiav. cov cav tov, portal submerged arc vuam tshuab, carbon dioxide shielded vuam, high-power punching presses, txias dabtsi yog khoov txoj kev tshuab, milling tshuab, CNC dabtsi yog khoov thiab shearing tshuab thiab lwm yam. Cov neeg ua haujlwm zoo tau nruab rau hauv txhua lub tshuab, yog li cov tsev tuaj yeem ua tiav tag nrho. CNC ntau lawm, uas ua kom lub tsev tsim tau raws sij hawm, ua tau zoo thiab raug.
| Poj niam tsev tso quav specification | ||
| Specification | L * W * H (mm) | Qhov loj me 6055 * 2990 / 2435 * 2896 Sab hauv loj 5845 * 2780 / 2225 * 2590 customzied loj tuaj yeem muab |
| Lub tsev hom | Lub ru tsev tiaj tus nrog plaub sab hauv cov kav dej (Drain-pipe cross loj: 40 * 80mm) | |
| Storey | ≤ 3 | |
| Tsim hnub | Tsim kev pab lub neej | 20 xyoo |
| Pem teb nyob load | 2.0KN / ㎡ | |
| Ru tsev nyob load | 0.5KN / ㎡ | |
| Huab cua load | 0.6KN / ㎡ | |
| Sersmic | 8 degree | |
| Qauv | Kem | Specification: 210 * 150mm, Galvanized txias yob steel, t = 3.0mm Khoom siv: SGC440 |
| Lub tsev beam | Specification: 180mm, Galvanized txias yob steel, t = 3.0mm Khoom siv: SGC440 | |
| Pem teb main beam | Specification: 160mm, Galvanized txias yob steel, t = 3.5mm Khoom siv: SGC440 | |
| Ru tsev sub beam | Specification: C100 * 40 * 12 * 2.0 * 7PCS, Galvanized txias yob C steel, t = 2.0mm Khoom siv: Q345B | |
| Pem teb sub beam | Specification: 120 * 50 * 2.0 * 9pcs, "TT" puab nias steel, t = 2.0mm Khoom siv: Q345B | |
| Xim | Hmoov electrostatic txau lacquer≥80μm | |
| Rooj | Lub vaj huam sib luag | 0.5mm Zn-Al coated yeeb yuj steel ntawv, dawb-grey |
| Cov khoom siv rwb thaiv tsev | 100mm iav ntaub plaub nrog ib qho Al foil.density ≥14kg/m³, Class A Tsis-combustible | |
| Qab nthab | V-193 0.5mm nias Zn-Al coated yeeb yuj steel ntawv, zais ntsia thawv, dawb-grey | |
| Pem teb | Pem teb nto | 2.0mm PVC board, tsaus grey |
| Puag | 19mm cement fiber board, ntom ≥1.3g / cm³ | |
| Moistureproof txheej | Moisture-pov thawj yas zaj duab xis | |
| Hauv qab sealing phaj | 0.3 hli Zn-Al coated board | |
| Phab ntsa | Thickness | 75mm tuab yeeb yuj steel sandwich phaj;Sab nrauv phaj: 0.5mm txiv kab ntxwv tev aluminium plated zinc yeeb yuj steel phaj, ivory dawb, PE txheej;Puab phaj: 0.5mm aluminium-zinc plated ntshiab phaj ntawm xim hlau, dawb grey, PE txheej;Txais "S" hom plug interface kom tshem tawm cov nyhuv ntawm tus choj txias thiab kub |
| Cov khoom siv rwb thaiv tsev | pob zeb wool, ntom ≥100kg / m³, Chav A Tsis-combustible | |
| Qhov rooj | Specification (hli) | W * H = 840 * 2035 hli |
| Khoom siv | Steel shutter | |
| Qhov rai | Specification (hli) | Qhov rai: WXH = 800 * 500; |
| Cov khoom siv ncej | Pastic steel, 80S, Nrog kev tiv thaiv tub sab tub nyiag, Qhov rai pom qhov rai | |
| iav | 4mm + 9A + 4mm ob lub iav | |
| Hluav taws xob | Qhov hluav taws xob | 220V ~ 250V / 100V ~ 130V |
| Hlau | Main hlau: 6㎡, AC xaim: 4.0㎡, socket hlau: 2.5㎡, lub teeb hloov hlau: 1.5㎡ | |
| Breaker | Miniature Circuit Court breaker | |
| Teeb pom kev zoo | Ob chav voj voog teeb, 18W | |
| Qhov (socket). | 2pcs 5 qhov socket 10A, 1pcs 3 qhov AC socket 16A, 1pcs ib qho kev sib txuas dav hlau hloov 10A, (EU / US ..standard) | |
| Water Supply & Drainage System | Qhov system muab dej | DN32, PP-R, Cov kav dej xa dej thiab fittings |
| Cov dej ntws tawm | De110 / De50, UPVC Dej cov yeeb nkab thiab fittings | |
| Hlau Ncej | Cov khoom siv ncej | Galvanized square yeeb nkab 40 * 40 * 2 |
| Puag | 19mm cement fiber board, ntom ≥1.3g / cm³ | |
| Pem teb | 2.0mm tuab PVC pem teb, tsaus grey | |
| Cov khoom siv huv huv | Cov khoom siv huv huv | 5 chav dej squatting thiab dej tank, 1 mop dab dej thiab faucet, 2 kem basins thiab faucet |
| Muab faib | 1200 * 900 * 1800 Imitation ntoo lis muab faib, aluminium alloy daim npav qhov, stainless hlau ntug | |
| Fittings | 1 pcs ntaub so ntswg, 2 pcs chav dej iav, Stainless hlau gutter, stainless hlau gutter grate, 1 pcs standy pem teb ntws | |
| Lwm tus | Sab saum toj thiab kem decorate ib feem | 0.6mm Zn-Al coated xim hlau ntawv, dawb-grey |
| Skirting | 0.8mm Zn-Al coated xim steel skirting, dawb-grey | |
| Qhov rooj kaw | 1 pcs Qhov Rooj Closer, Aluminium (yeem) | |
| Exhaust kiv cua | 1 pcs phab ntsa tso kiv cua, stainless hlau rainproof cap | |
| Txais cov qauv tsim, cov khoom siv thiab fittings yog accord nrog lub teb chaws tus qauv.as well as, customized loj thiab lwm yam chaw yuav muab tau raws li koj xav tau. | ||
